ELECTRIC OFF-ROAD MOTORCYCLE
(MADE IN CZECH REPUBLIC)
ABOUT US

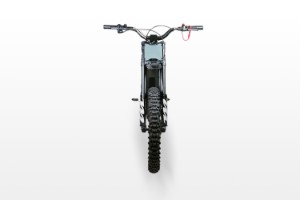

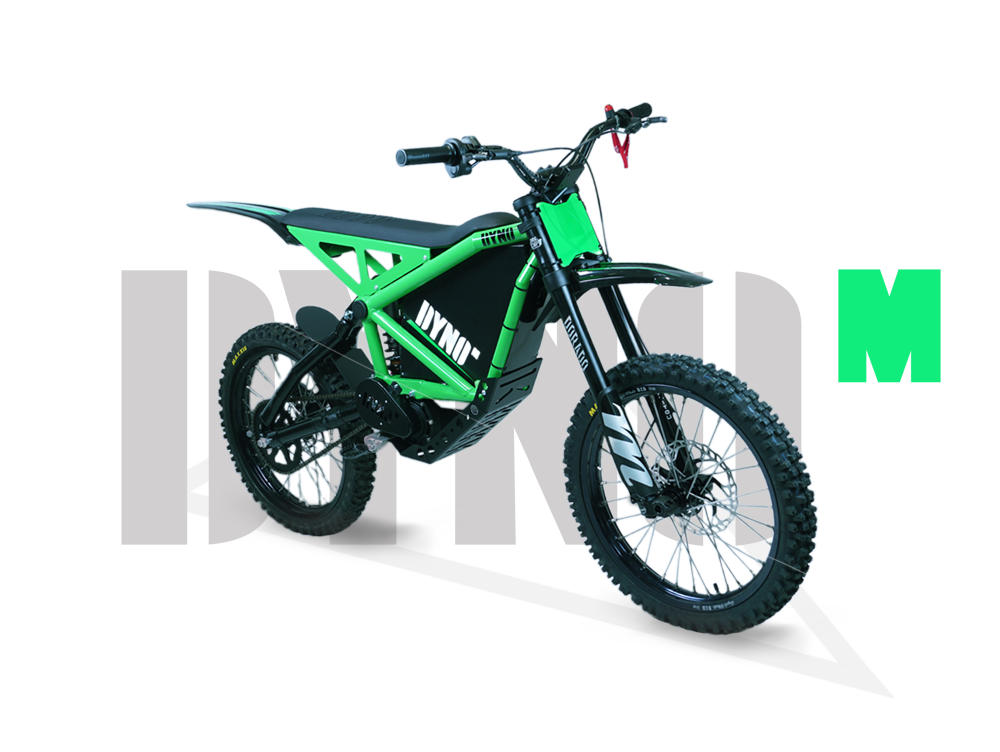

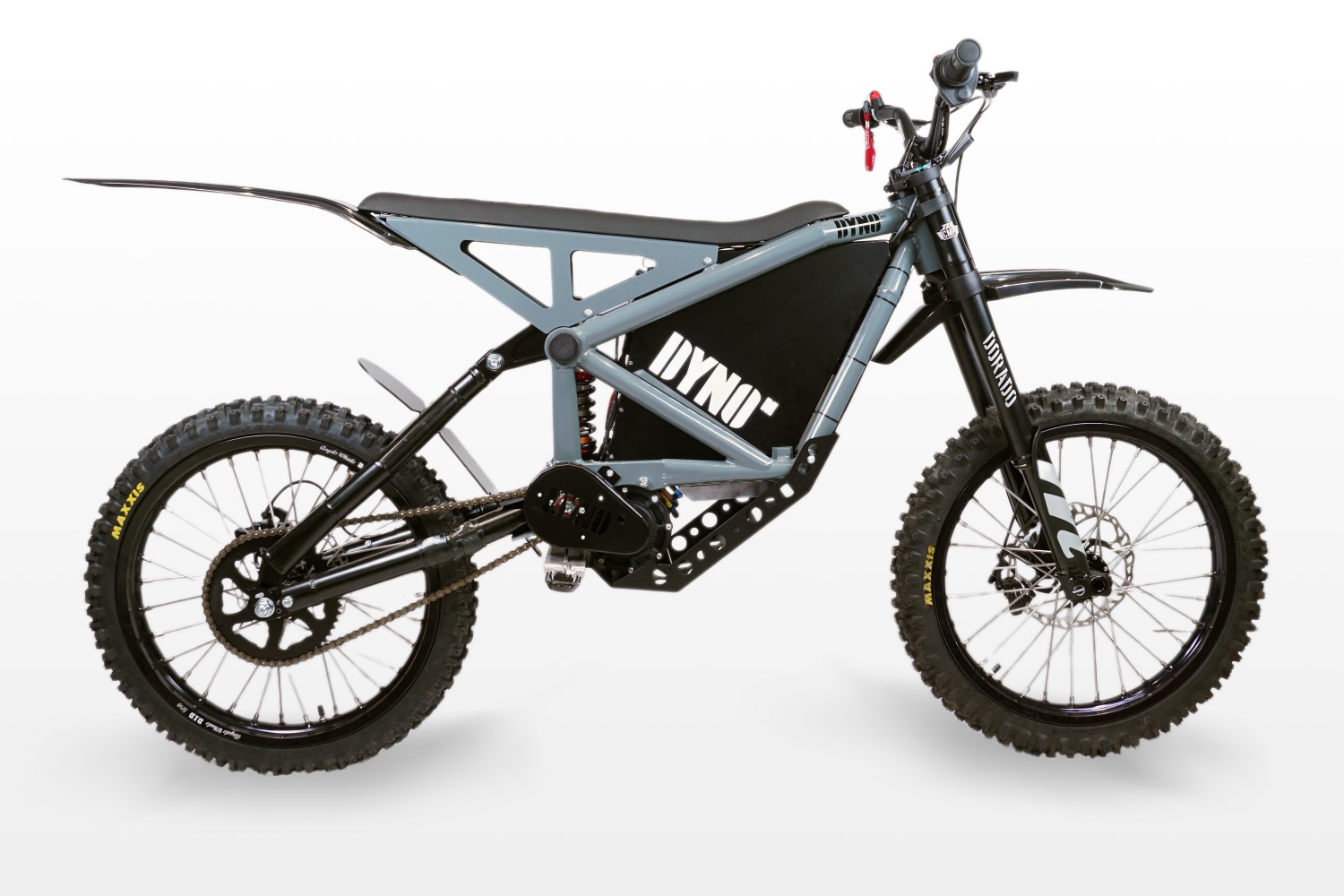

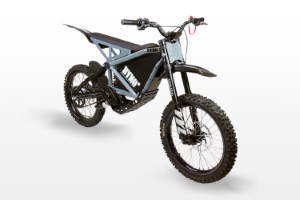

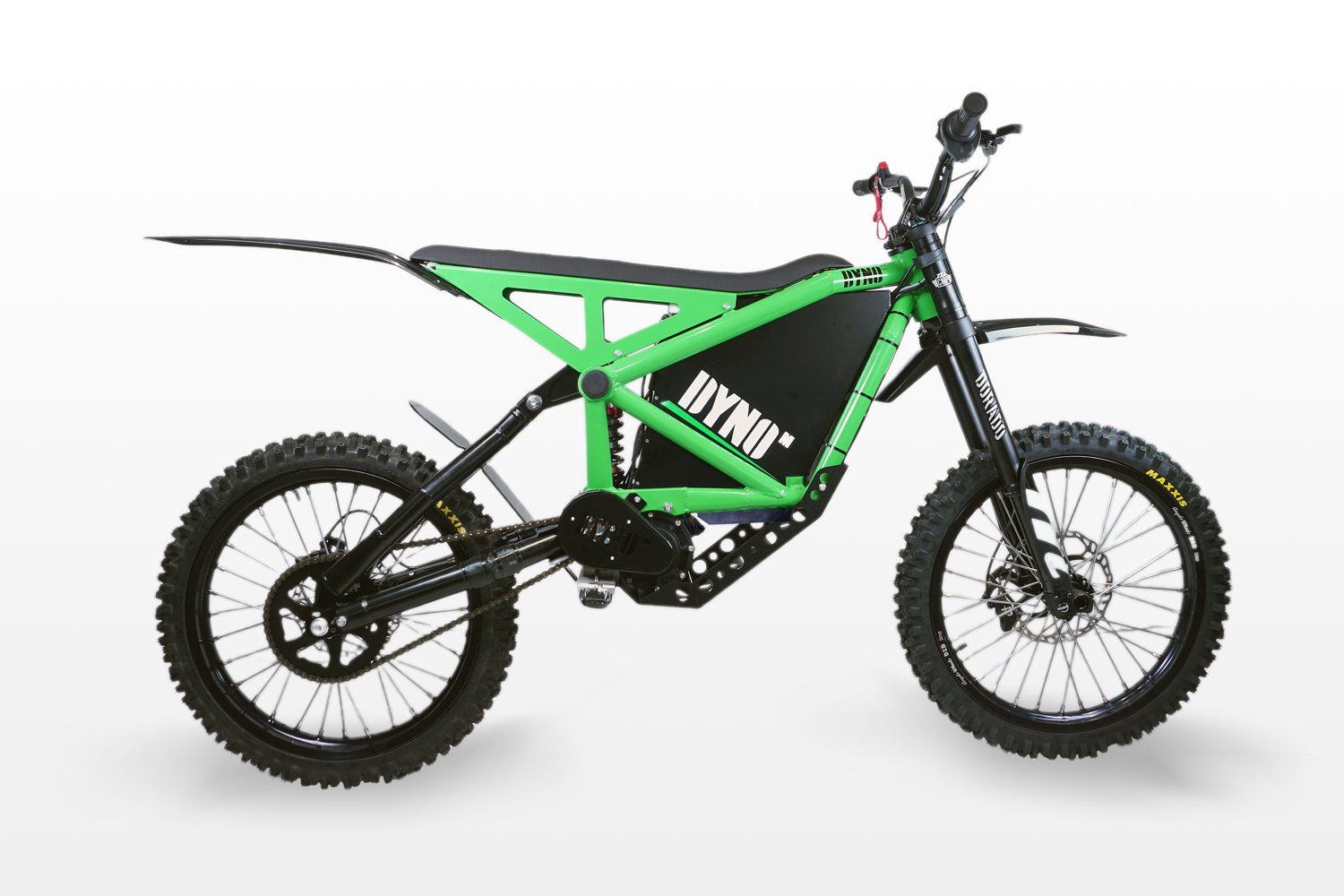

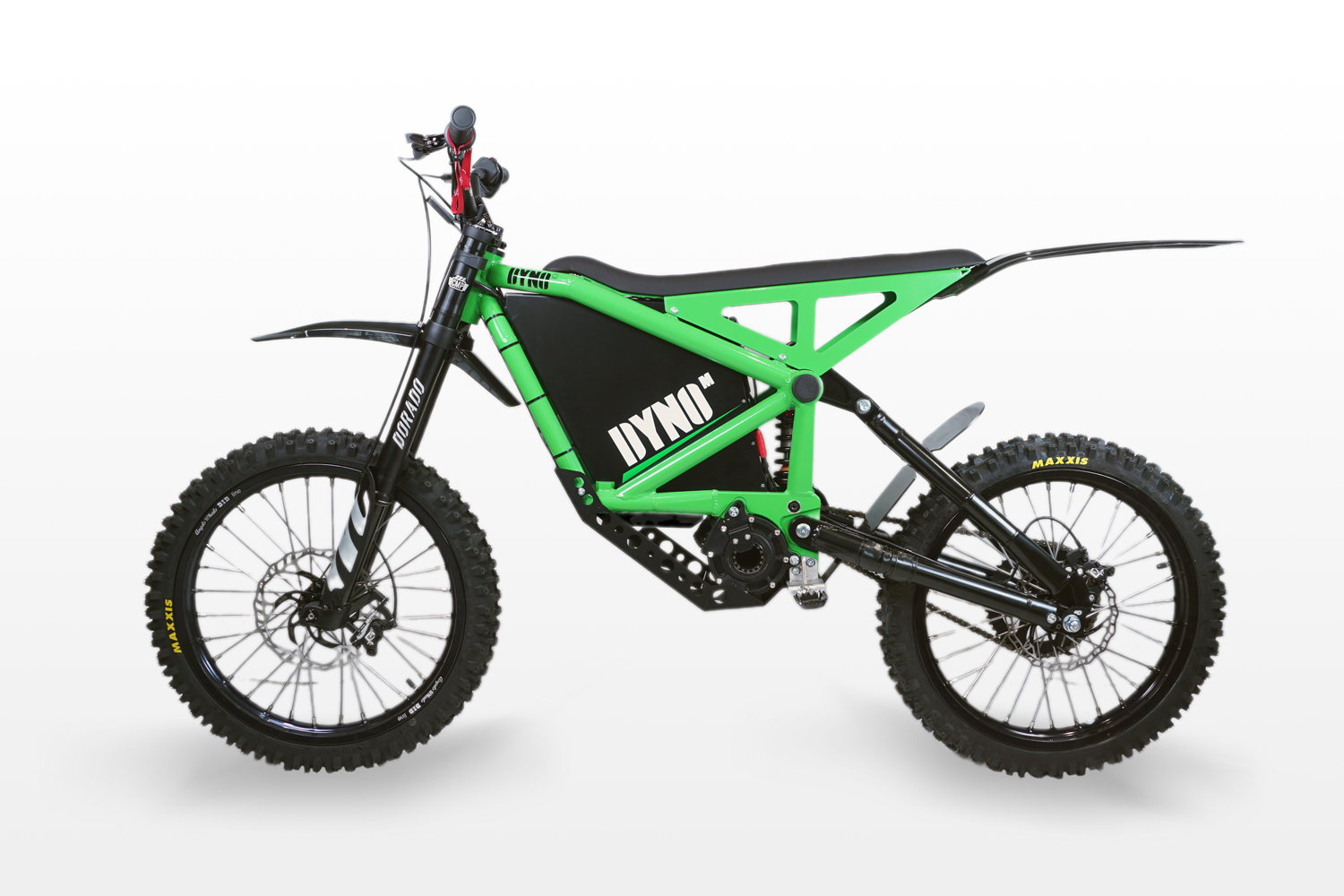

DYNO M ELECTRIC
OFF-ROAD MOTORCYCLE
Introducing the DYNO M, a cutting-edge enduro motorcycle derived from military-grade terrain electric tactical bike model, now available for civilian adventurers. Built to withstand the harshest conditions, the DYNO M features a powerful and robust but ultralight electric motor and advanced suspension system, ensuring exceptional performance on any terrain. It's lightweight, durable frame and stealthy design offer unparalleled agility and resilience. DYNO M is the ultimate fusion of military toughness and modern terrain bike innovations. Experience the power, reliability and ultra lightnees of a ride with the DYNO M, designed for the toughest terrain trails and the wildest adventures.
HAVE ANY QUESTION?
sales@dynobikes.pro
Price from 189.900,- Kč (VAT included) / 7.890 € (VAT included) / 6.890 $ (export price)
HIGHLIGHTS
MAPS
3 Maps (Eco, Sport, Extreme)
HOTSWAP BATTERY
Battery 14S18P, voltage: 50.4V nominal, 58.8V maximal, capacity: 54Ah, IP64 (dust and splashing water)
FRONT FORK
Manitou Dorado COMP 27.5", 203mm travel
FRAME
Heavy duty frame design, maximum load 160 kg (352lb), manually welded, fitted by threaded inserts and bolt sliding bearing

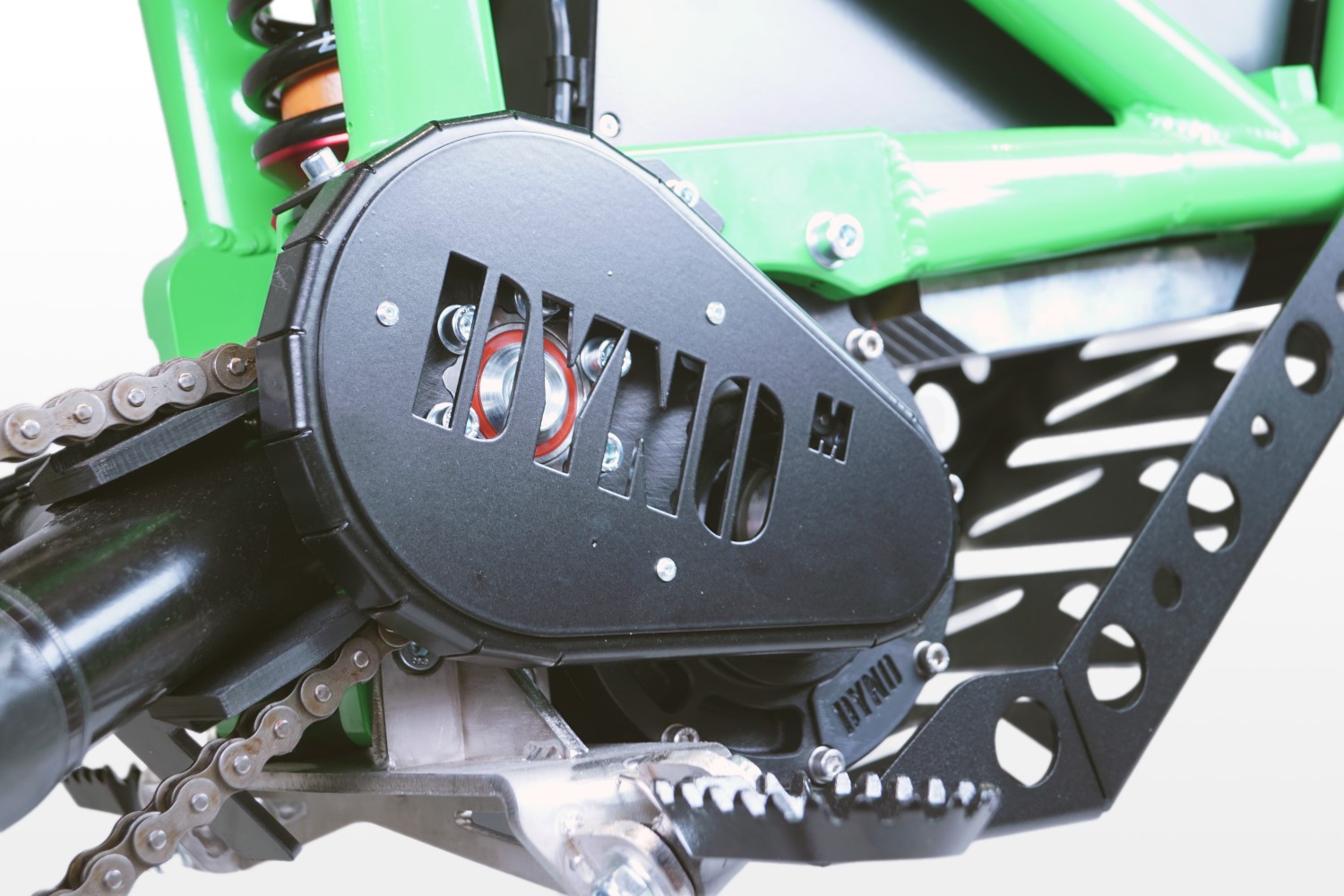

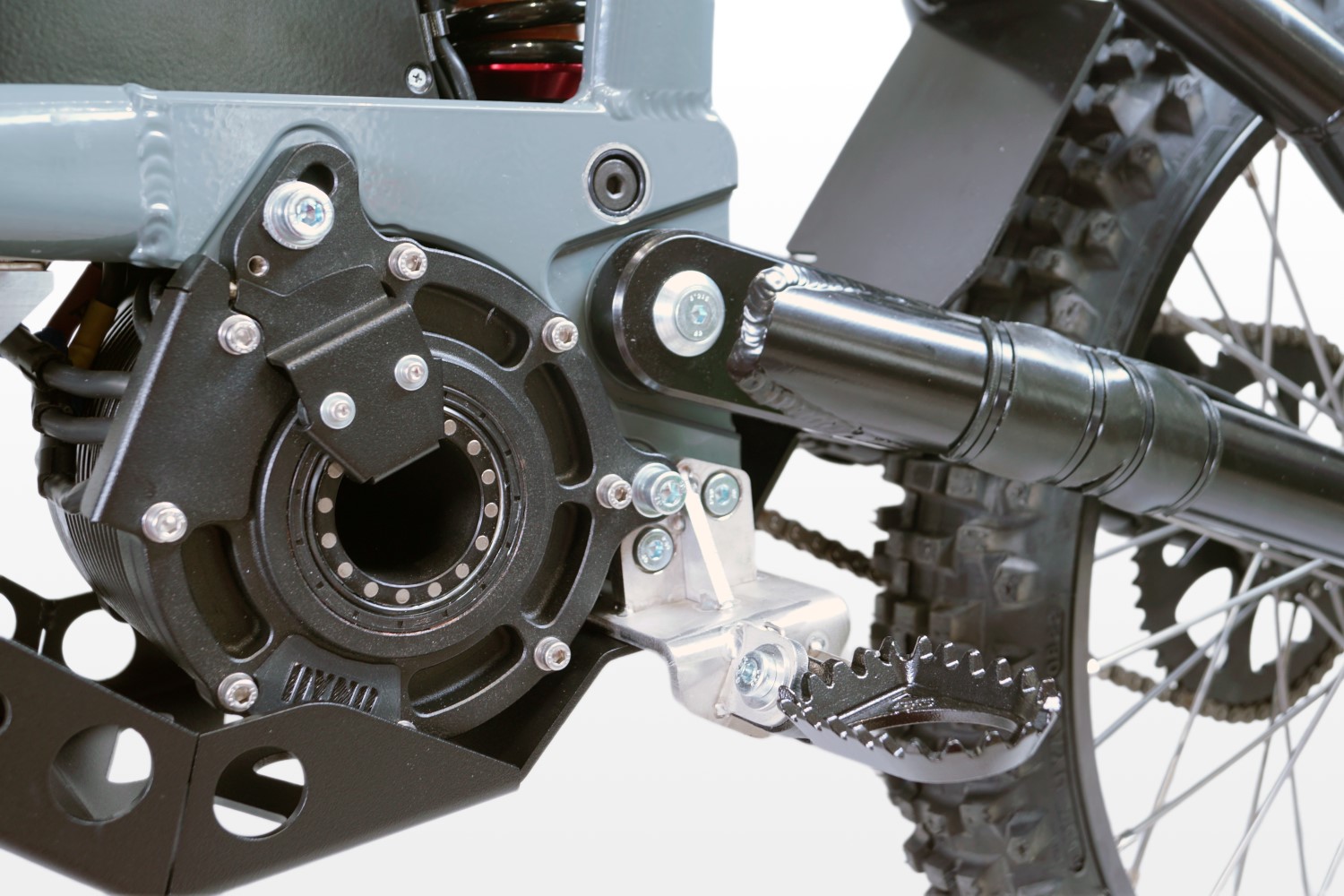

ENGINE
Nominal power 13kW, peak power 18kW, weight 6kg (13 lb), hall and temperature sensors

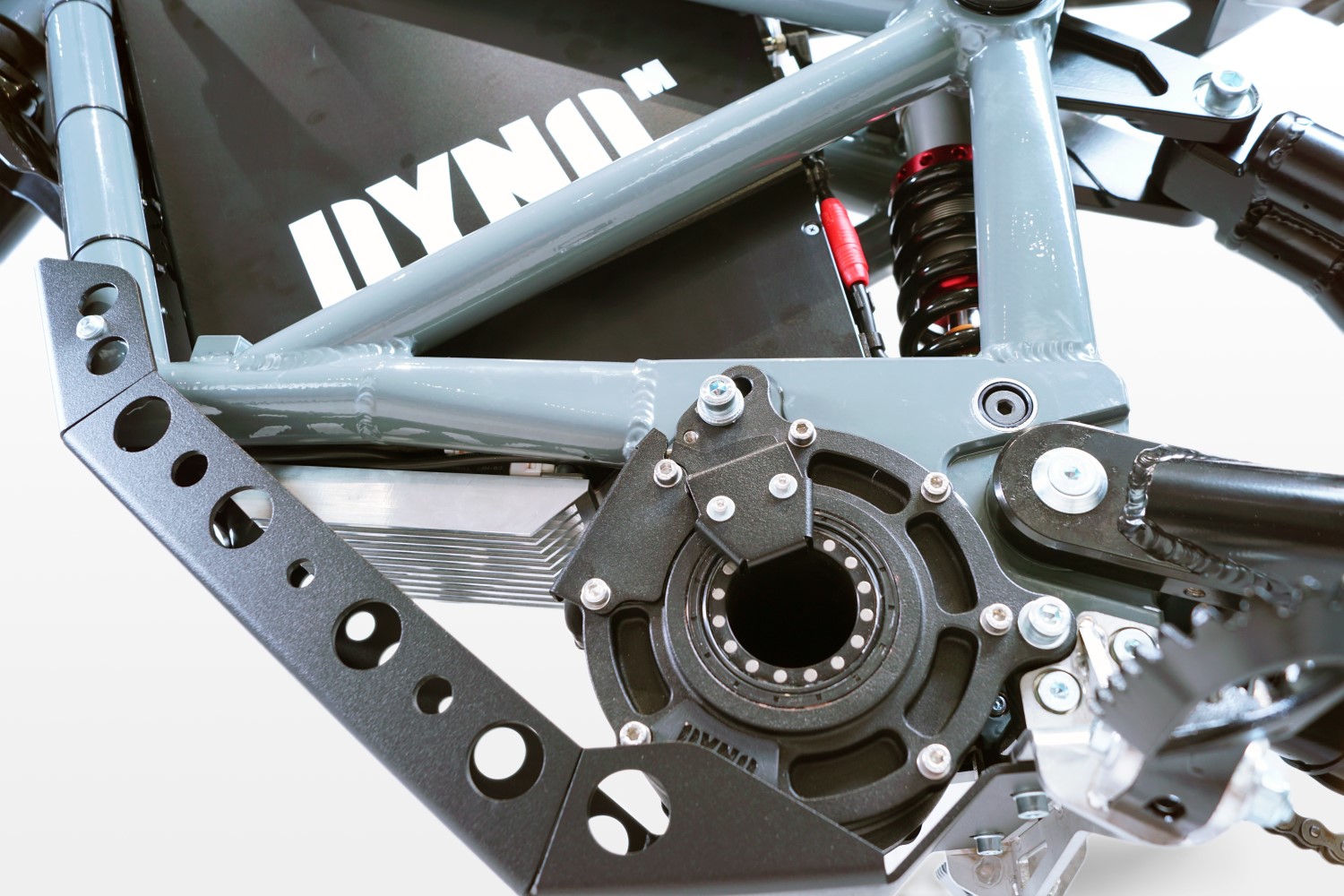

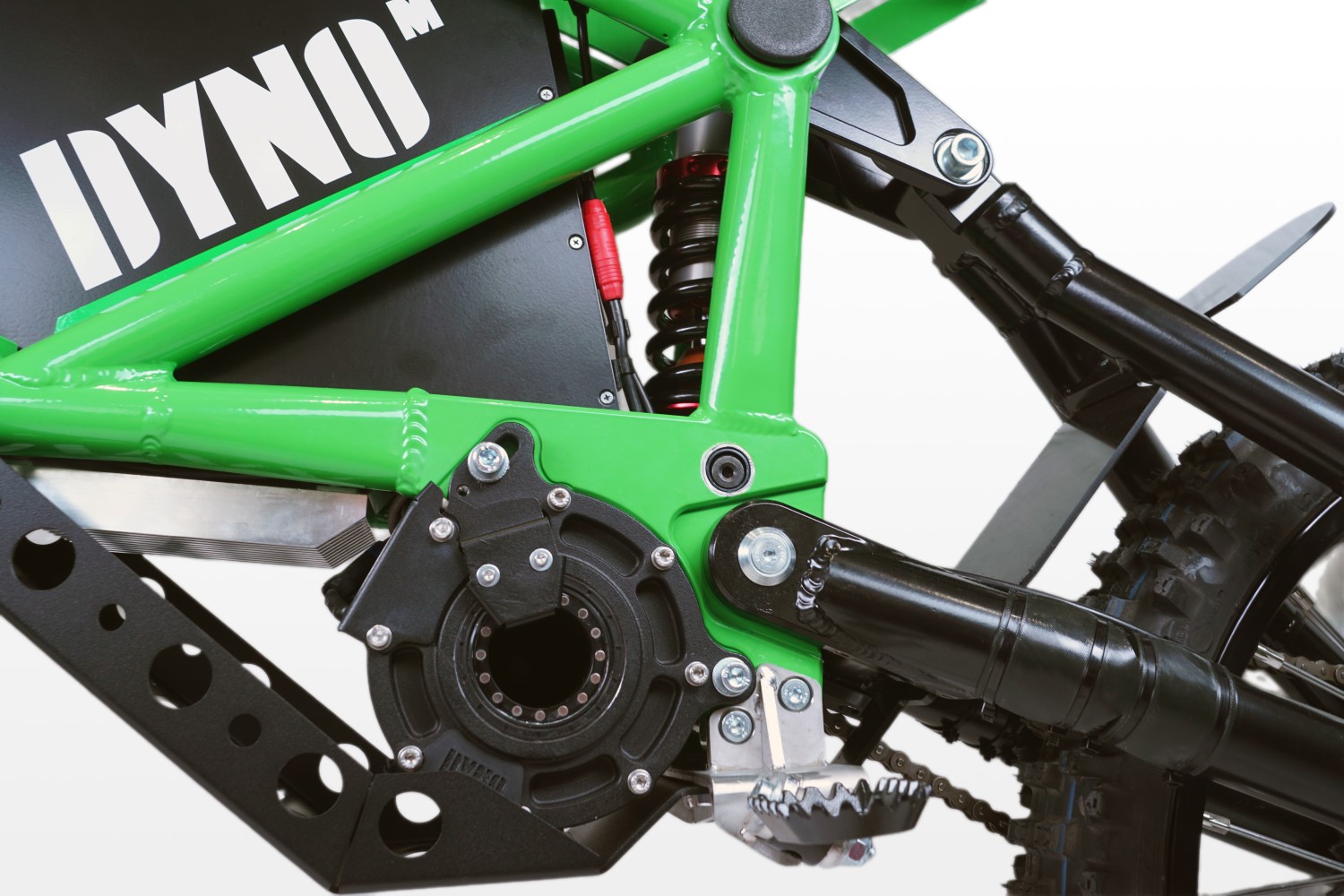

ENGINE PROTECTOR
Lightweight aluminium engine protector

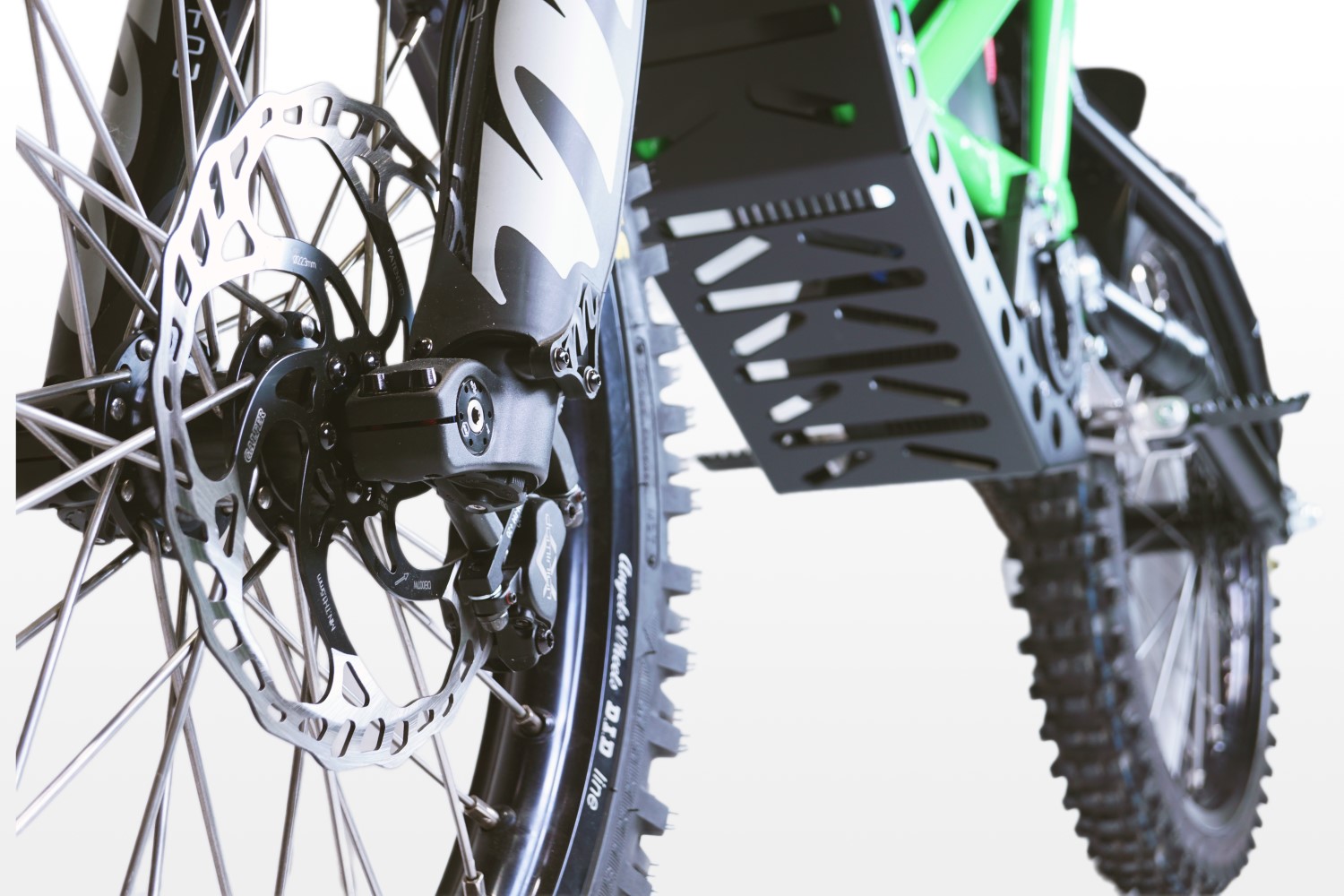

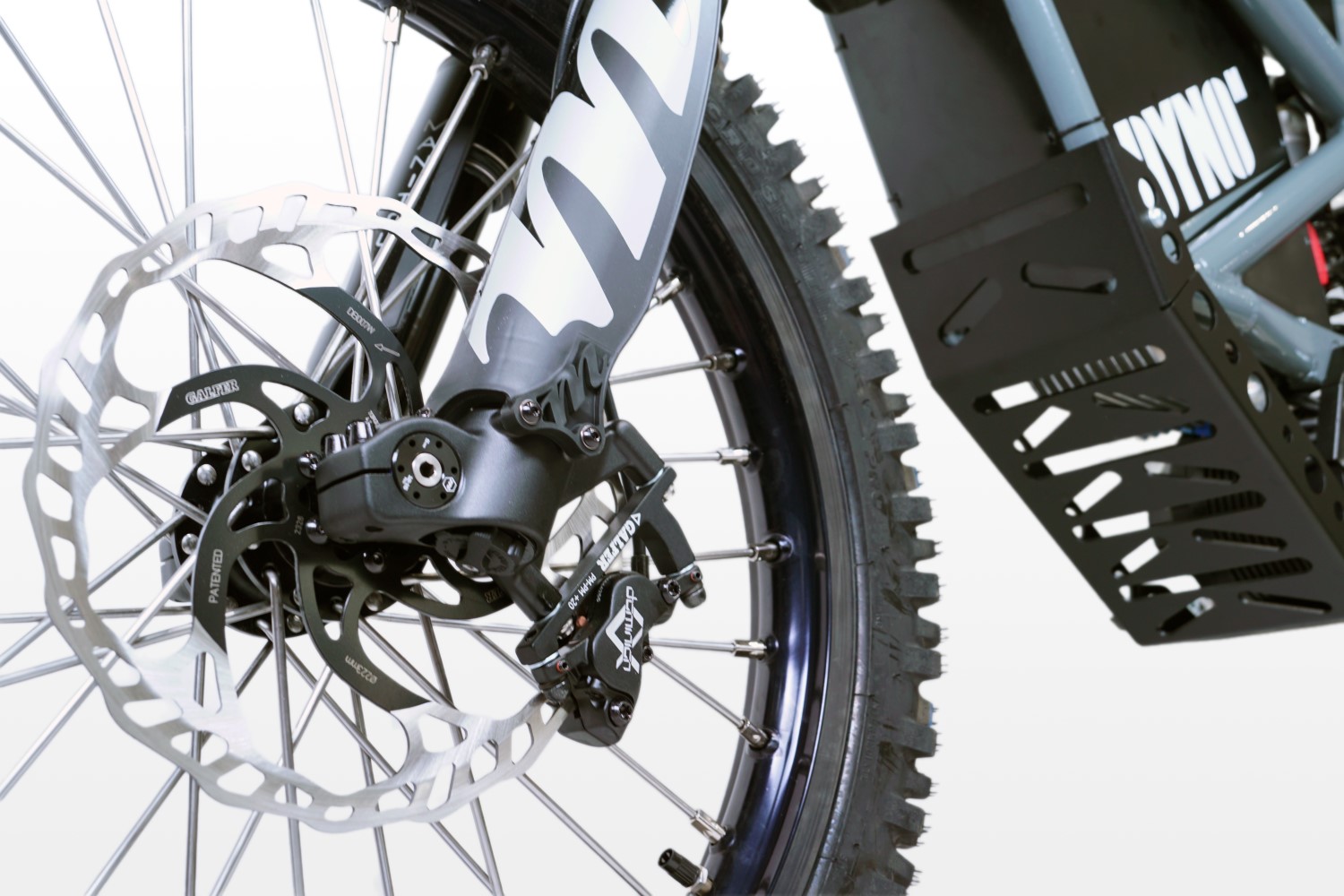

BRAKES
Front: 4 piston Dominion HS4, brake disc Galfer wave, 223mm
Rears: 4 piston Dominion HS4, brake disc Galfer wave, 203mm
REMOVABLE SEAT AND SUBFRAME GROUP
For easy battery hotswap and service access

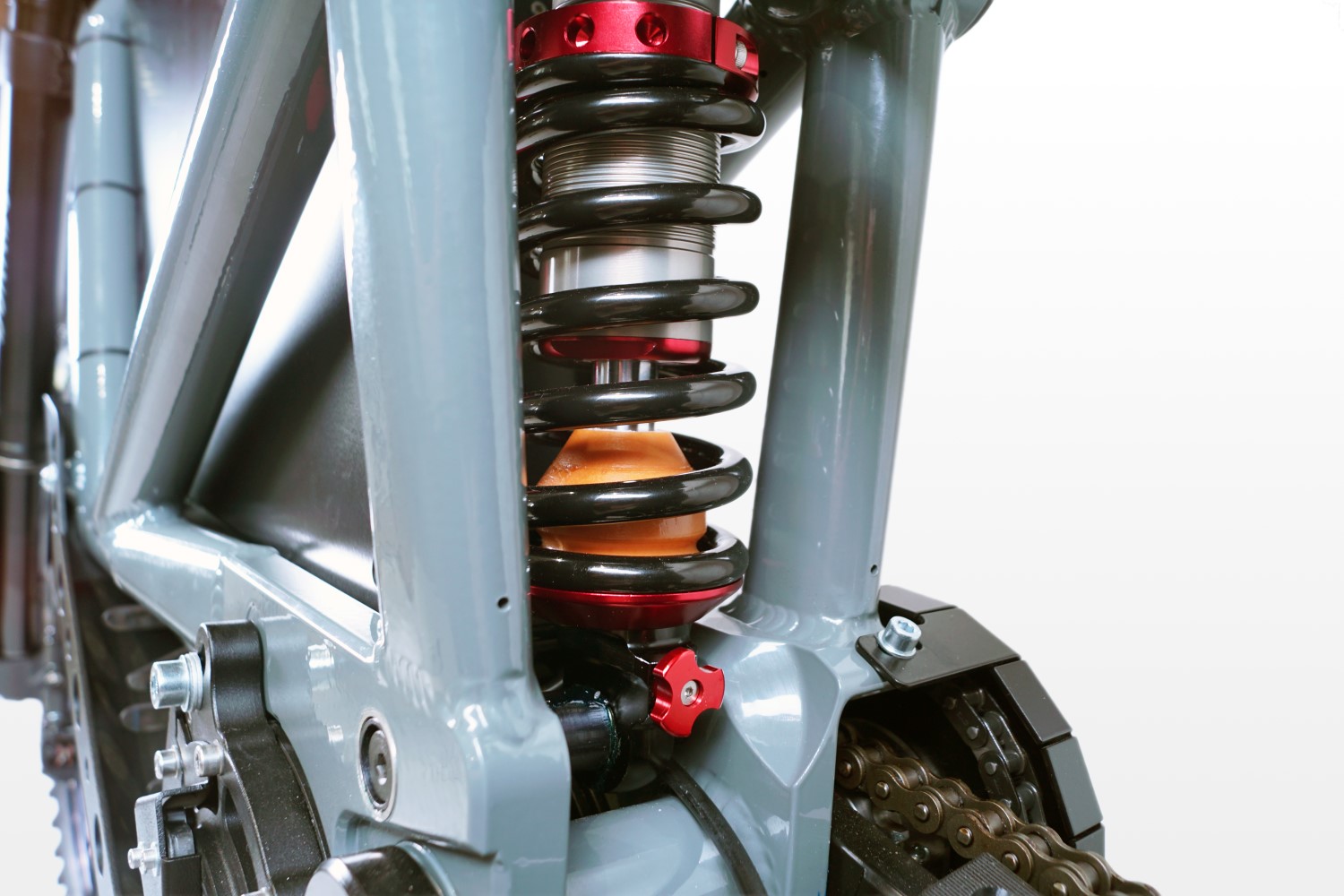

REAR SHOCK
ELKA 180mm

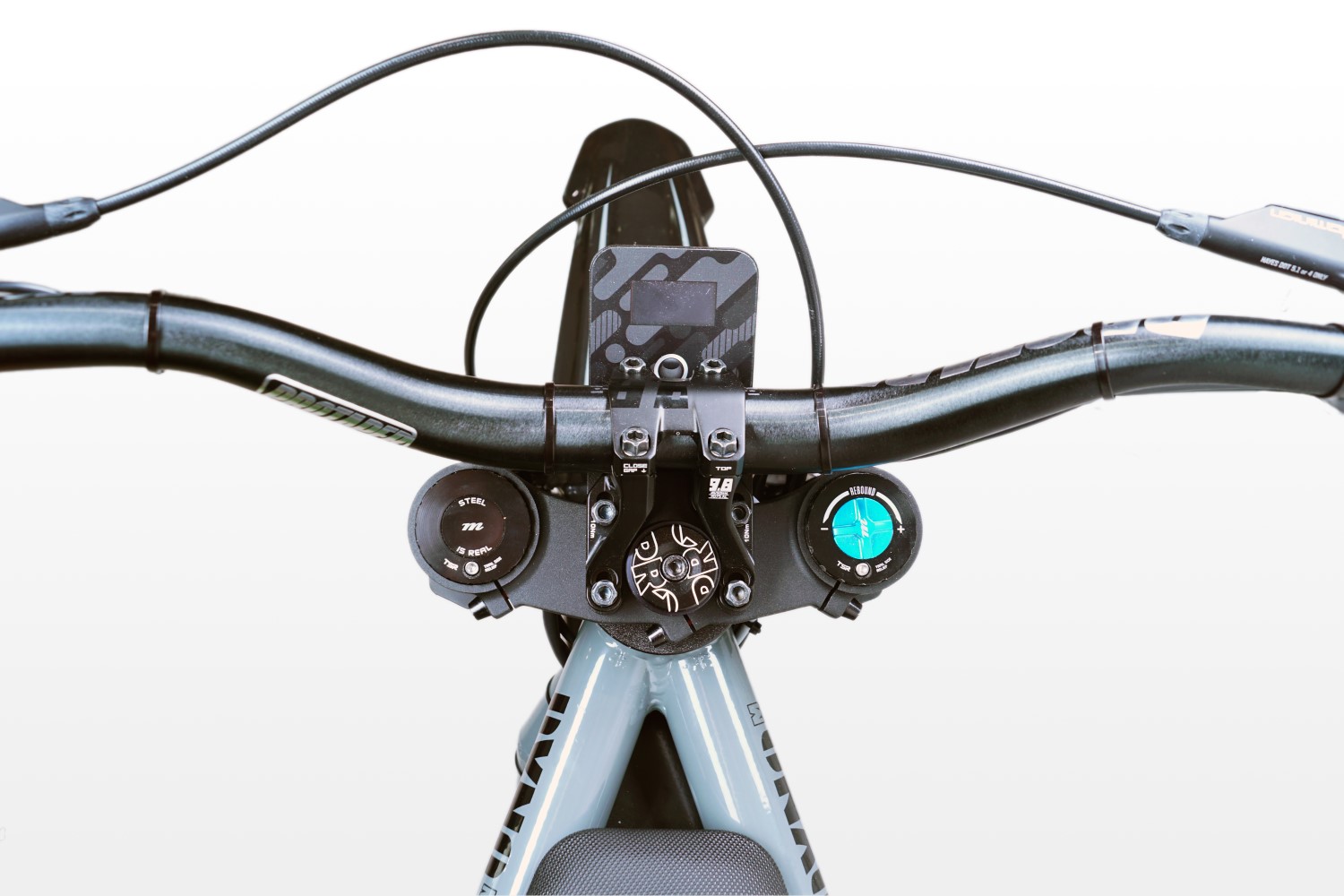

DISPLAY
multifunctional digital display with WiFi & CAN communication

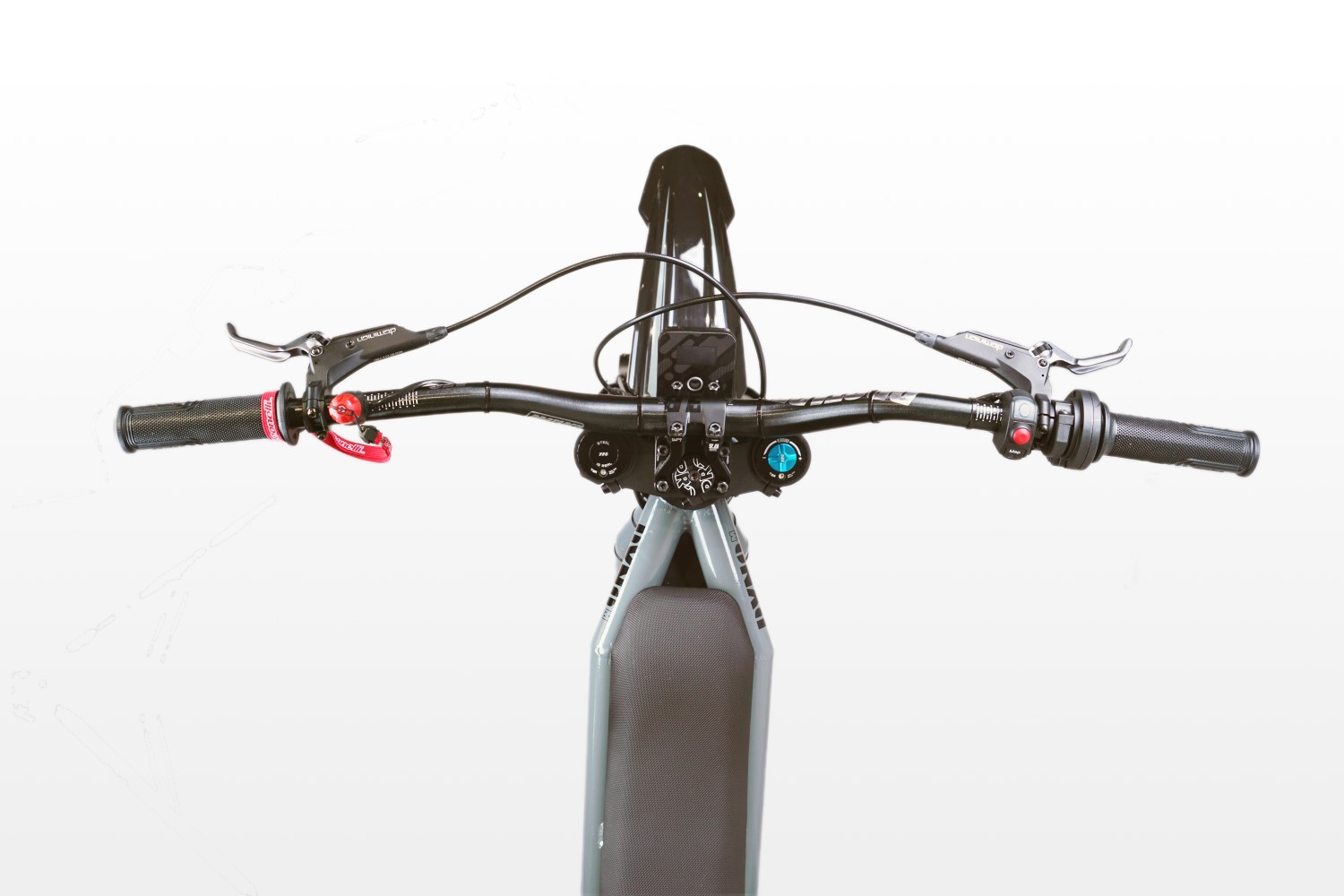

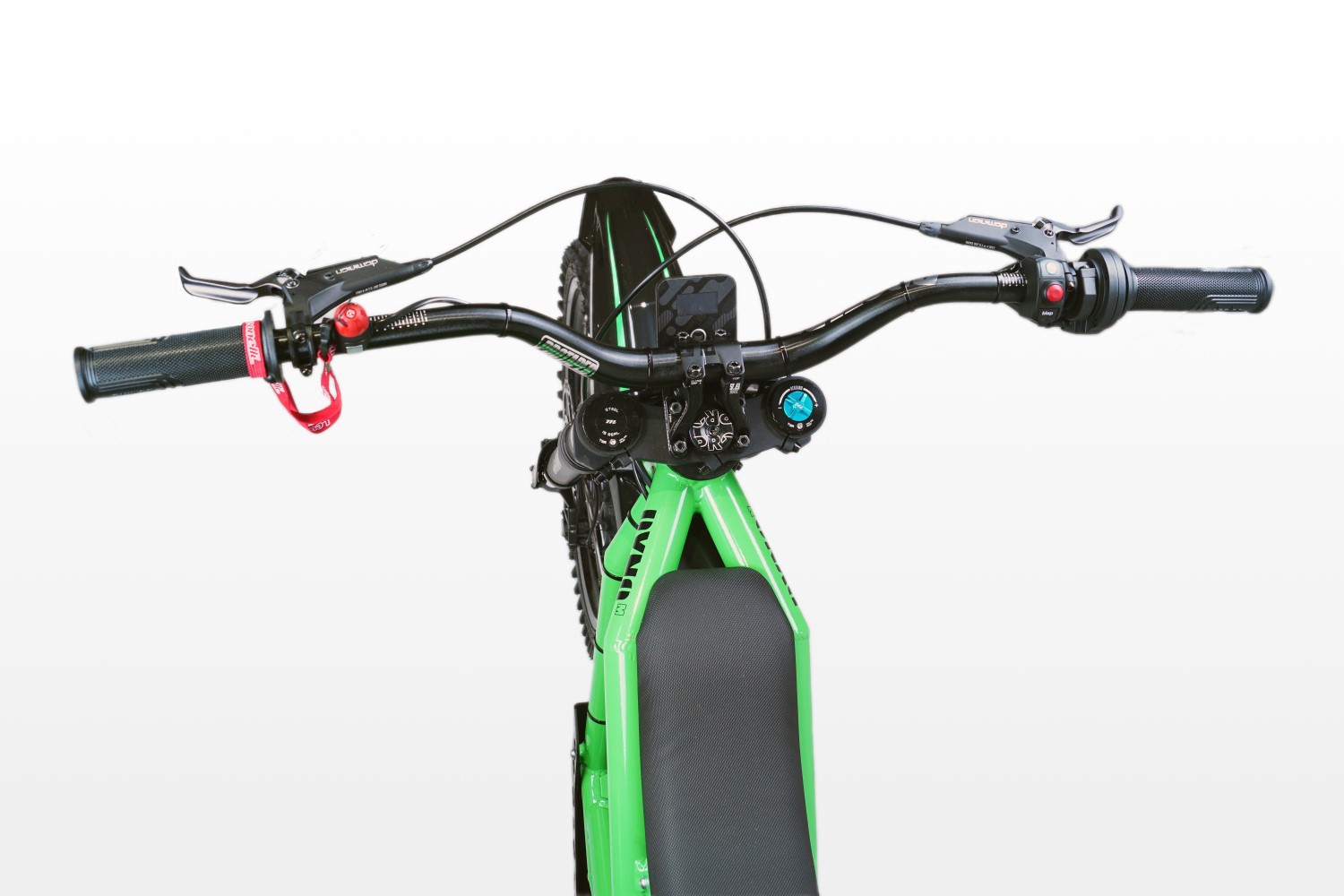

HANDLEBARS
PROTAPER
TIRES
MAXXIS MAXXCROSS tire 70/100-19 rim DID 1.85 X 19 32H DID
MAXXIS MAXXCROSS tire 70/100-19 rim DID 2.15 X 19 32H DID
AVAILABLE COLORS
TECHNICAL DETAILS
| FRAME | Aluminium, hand welded |
| FRONT BRAKE | 4 piston DOMINION Hs4, GALFER WAVE 223mm disc |
| REAR BRAKE | 4 piston DOMINION Hs4, GALFER WAVE 203 mm disc |
| FRONT RIM | DID 1.85 X 19 32H DID |
| REAR RIM | DID 2.15 X 19 32H DID |
| FRONT TIRE | MAXXIS MAXXCROSS 70/100-19 |
| REAR TIRE | MAXXIS MAXXCROSS 70/100-19 |
| FRONT FORK / STROKE | MANITOU DORADO COMP / 203MM |
| REAR SHOCK / STROKE | ELKA / 180MM |

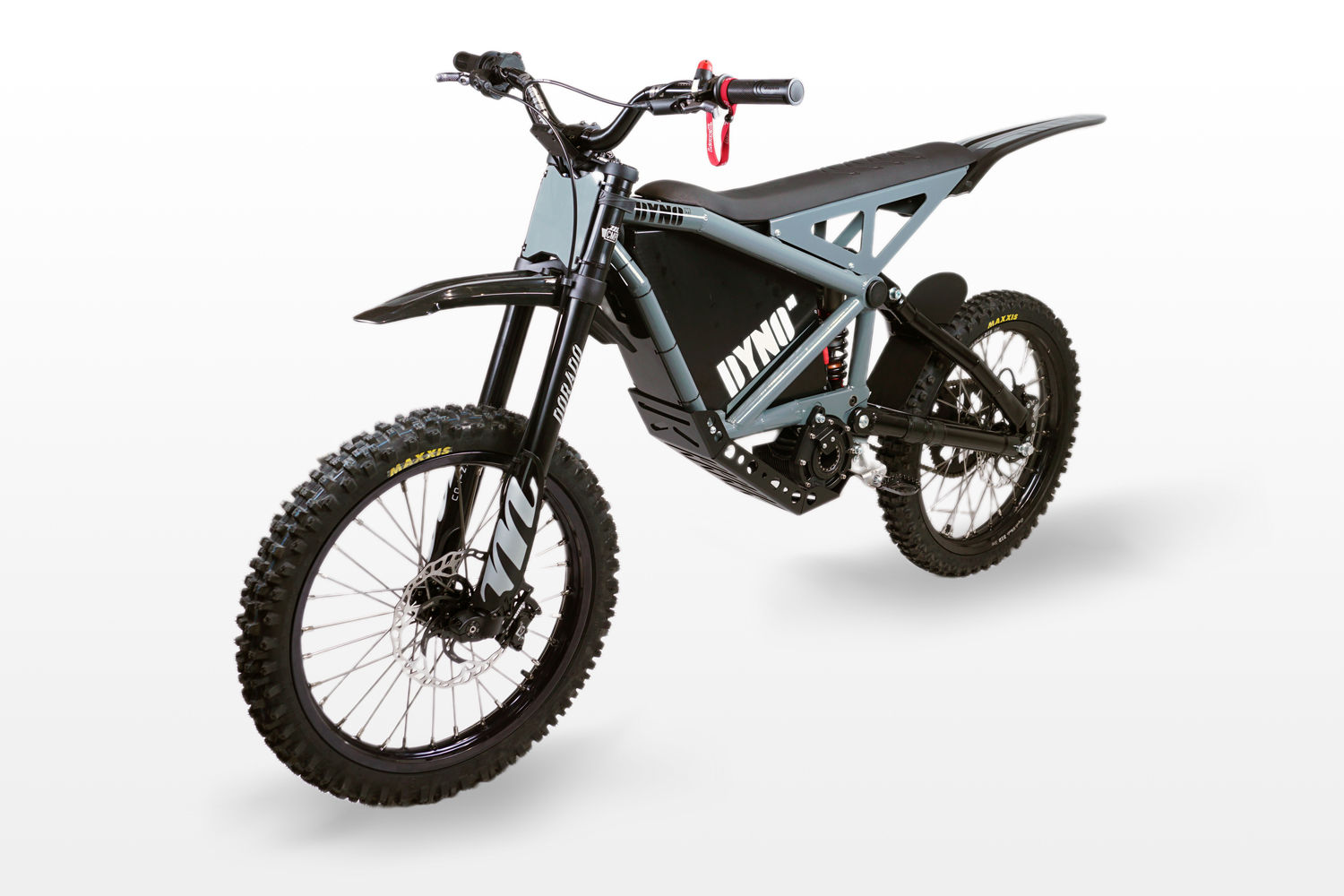

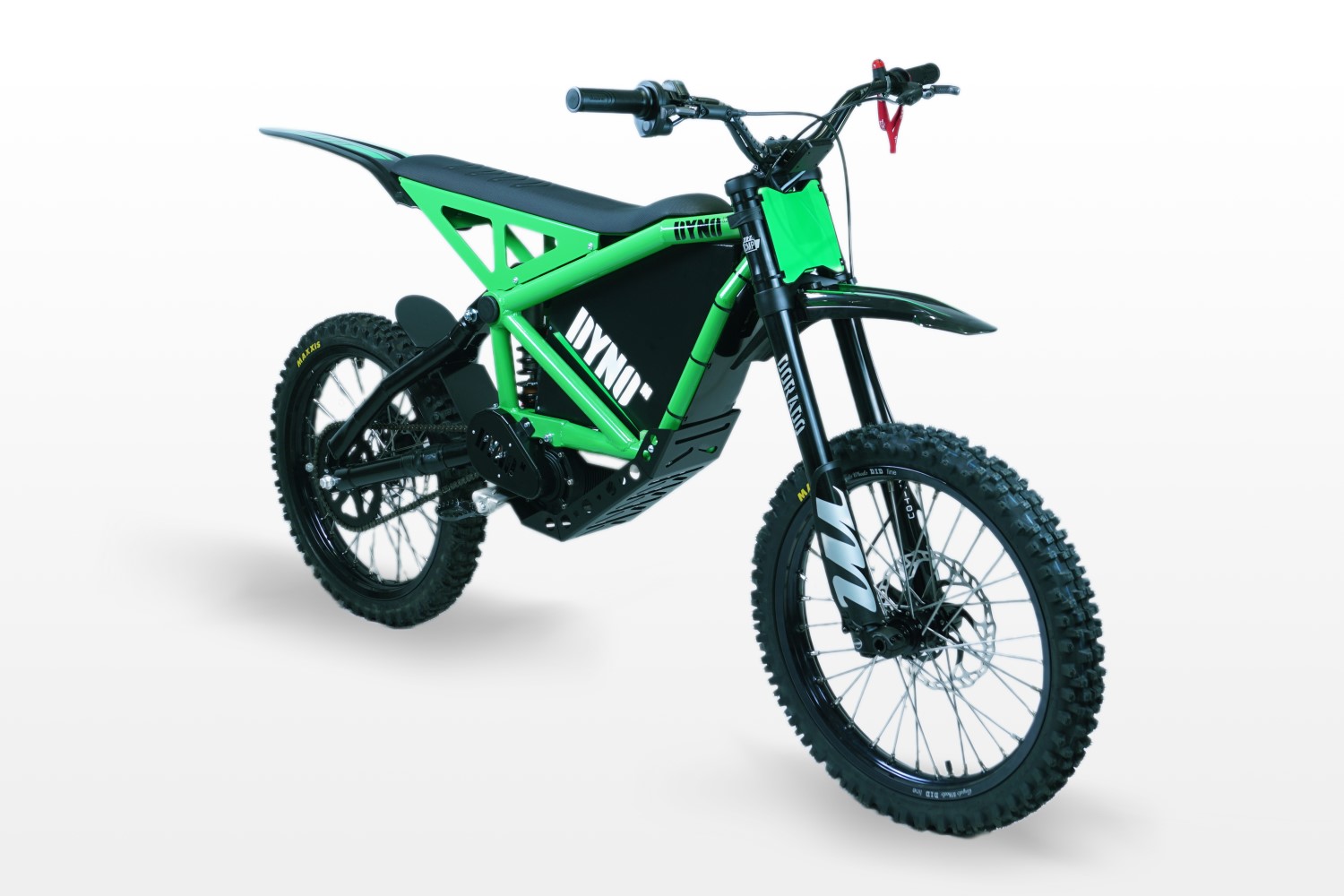

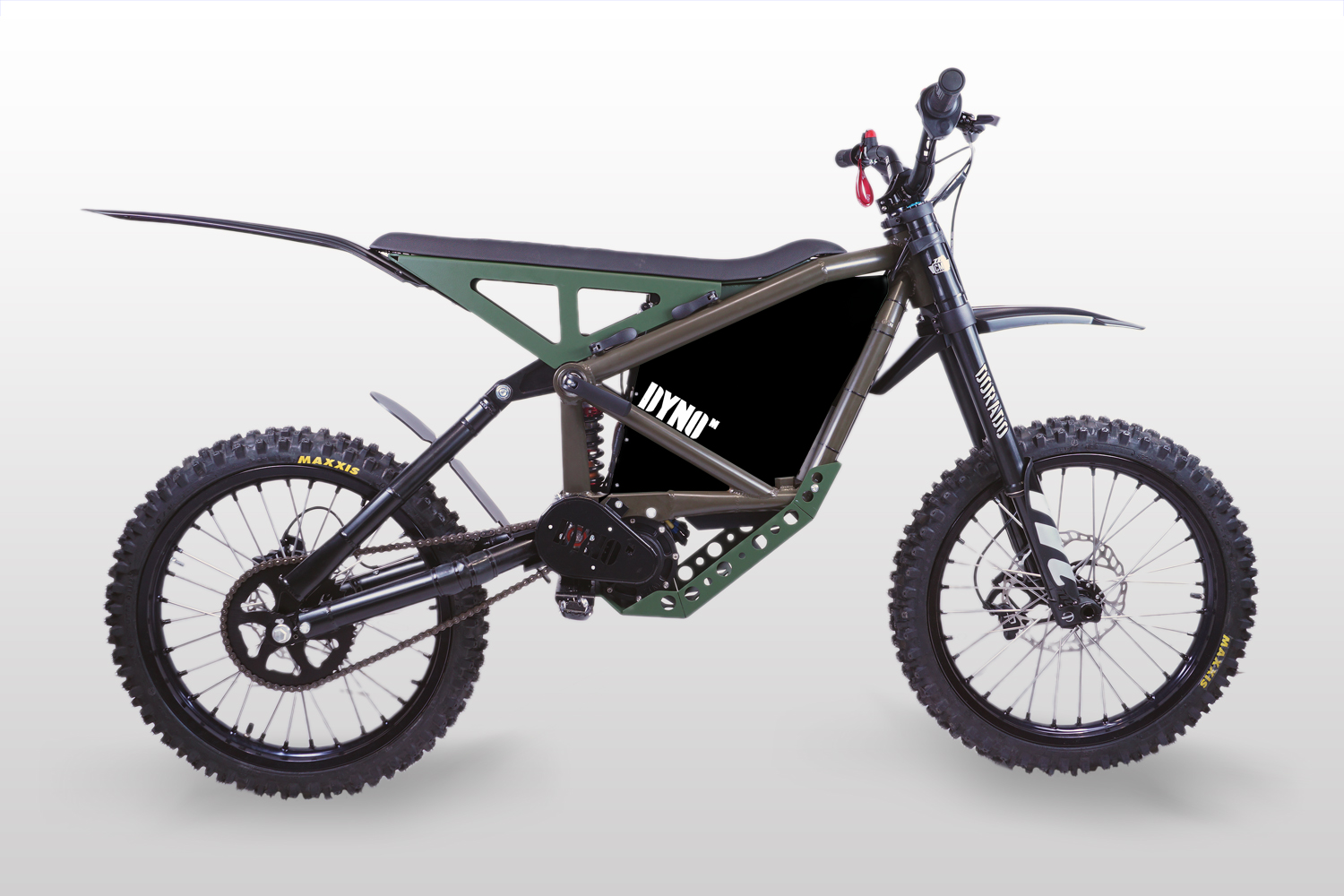

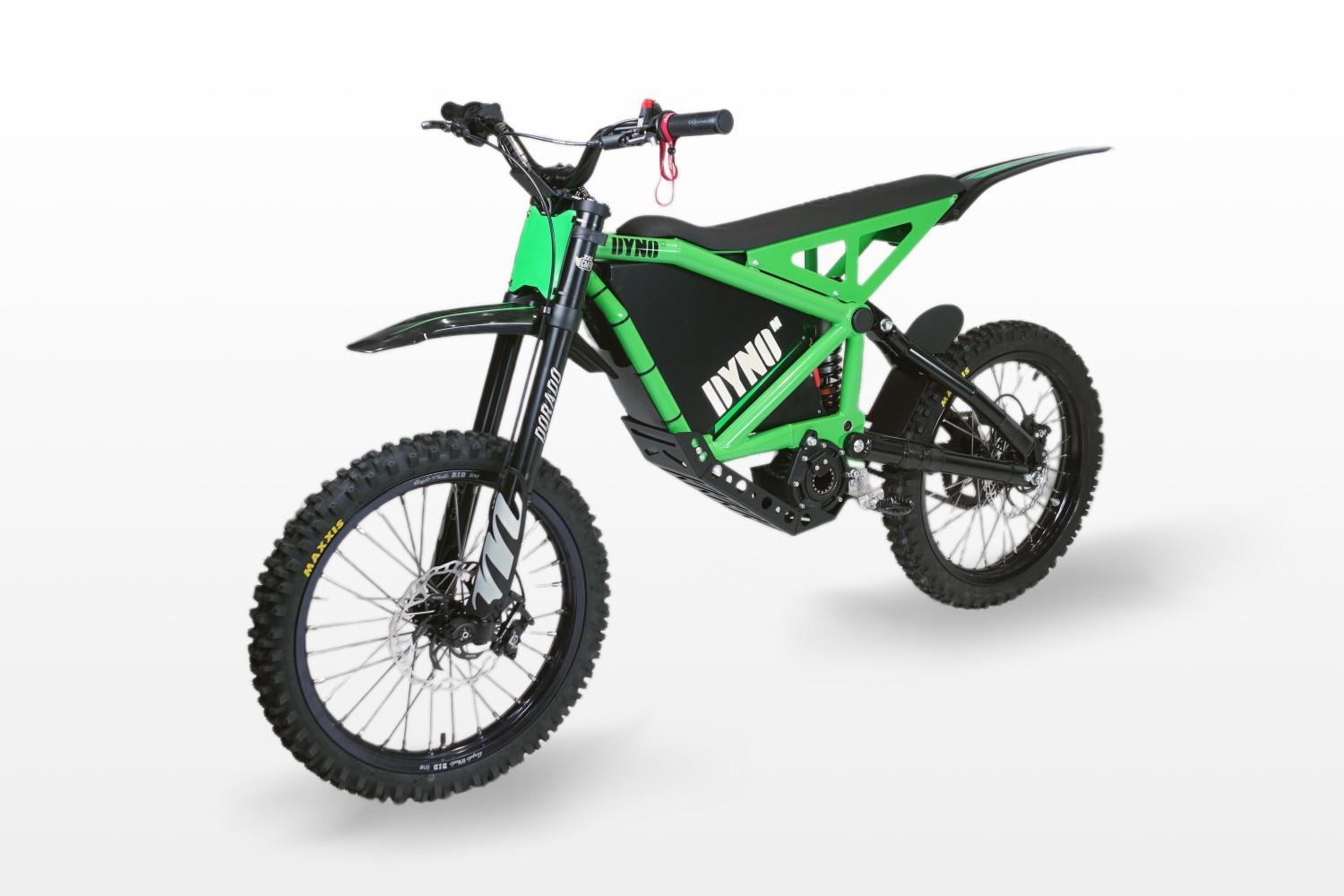

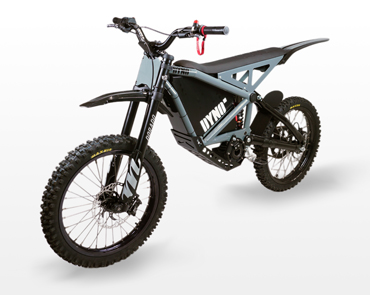

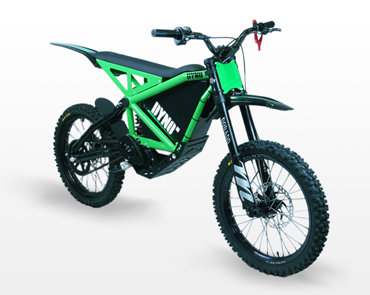

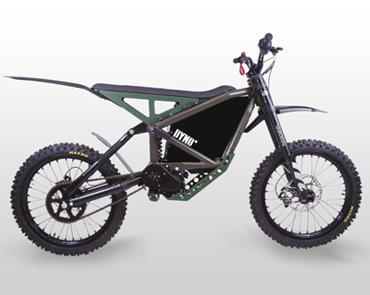

| COLOURS AVAILABLE | GREEN, GREY, OLIVE CAMO |
| NOMINAL POWER | 13 KW |
| PEAK POWER | 18 KW |
| MAXIMUM TORQUE | 30 NM |
| ENGINE RPM | 6.500 |
| TOP SPEED | 70 km/h (43 mph) with factory gear kit 12T/34T/52T |
| PRIMARY DRIVE CHAIN | 3/8" X 7/32" IWIS G67 |
| MAIN DRIVE CHAIN | RK TAKASAGO 420 MS |
| COOLING | AIR COOLING |
| ENERGY RECUPERATION | YES |

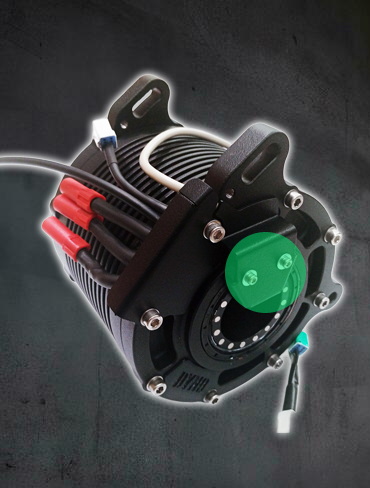

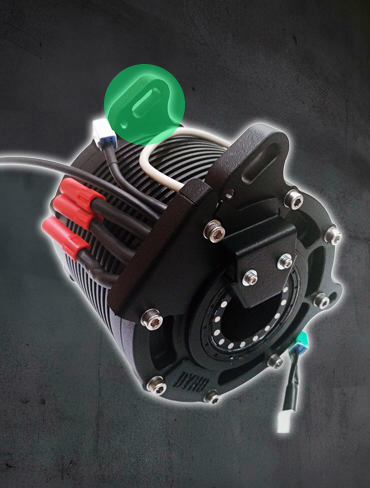

- HALL SENSOR

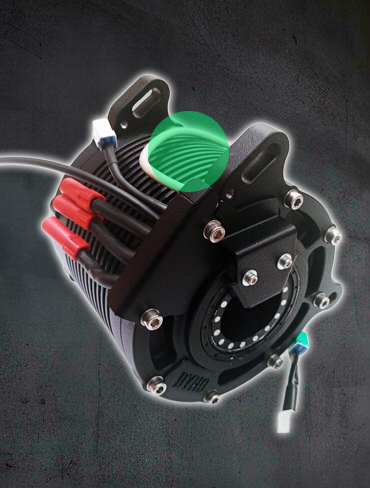

- ENGINE AIR COOLING FINS
- WEIGHT 6 KG (14 LB)

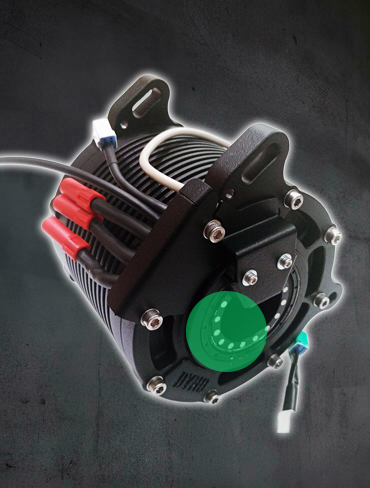

- AIR-PERMEABLE HOLLOW MOTOR AXIS FOR OPTIMAL ENGINE COOLING EFFECT

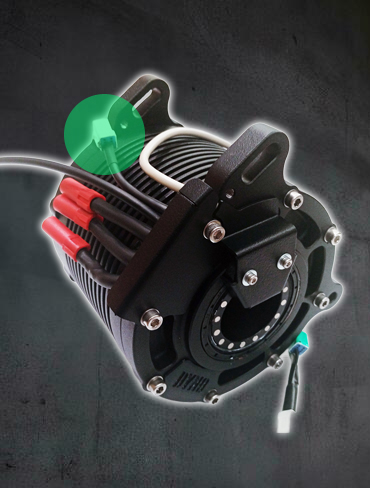

- INTEGRATED TEMPERATURE SENSOR
| BATTERY | FAST HOT-SWAP LITHIUM-ION BATTERY 14S18P |
| VOLTAGE | 50.4V NOMINAL / 58.8V PEAK |
| CAPACITY | 54 Ah / 2.75 kWh |
| BATTERY WEIGHT | 16 kg (35 lb) |
| CHARGER | optional 10A/15A/30A |
| CHARGE TIME | 4-4.5 hour (10A charger) |
| CHARGE CYCLE | 1000+ |
| AUTONOMY | up to 60km / 40 miles / 3h (difficult terrain conditions) |

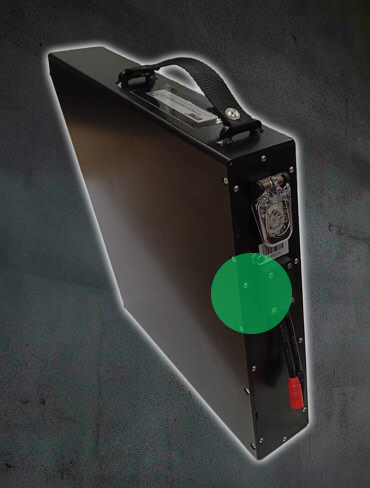

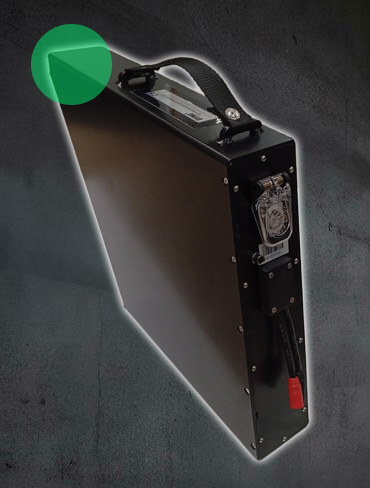

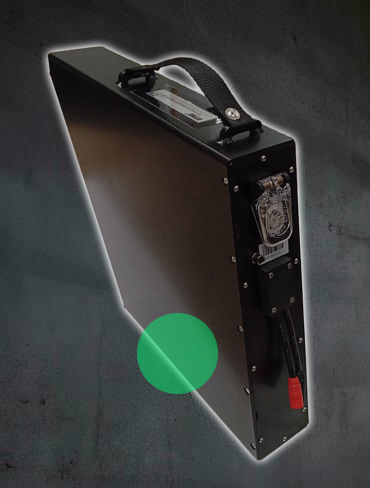

- FULLY SERVICEABLE BATTERY WITH REMOVABLE INTERNAL CELLS PACKET
- DIGITAL BMS WITH CAN COMMUNICATION, 4X BATTERY THERMIC SENSORS, 1X INTERNAL HUMIDITY SENSOR
- HOT-SWAP BATTERY 54AH
- BATTERY HANDLE FOR EASY MANIPULATION

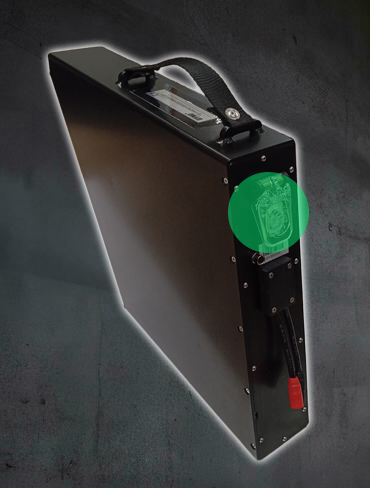

- CHARGING CONNECTOR IP 65 (DUST AND LOW PRESSURE WATER)

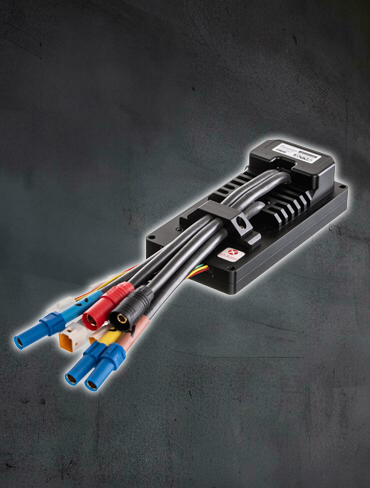

- SILIXCON SC CONTROLLER 72V / 400A
| LENGTH | 1.940 mm |
| WIDTH | 18 mm ( FRAME ), 820 mm ( HANDLEBAR ) |
| SEAT HEIGHT | 900 mm |
| WHEELBASE | 1.320 mm |
| LIGHT HEIGHT | 320 mm |
| WEIGHT | 64 Kg (142 lb) |
| MAXIMUM LOAD | 160 Kg (352 lb) |

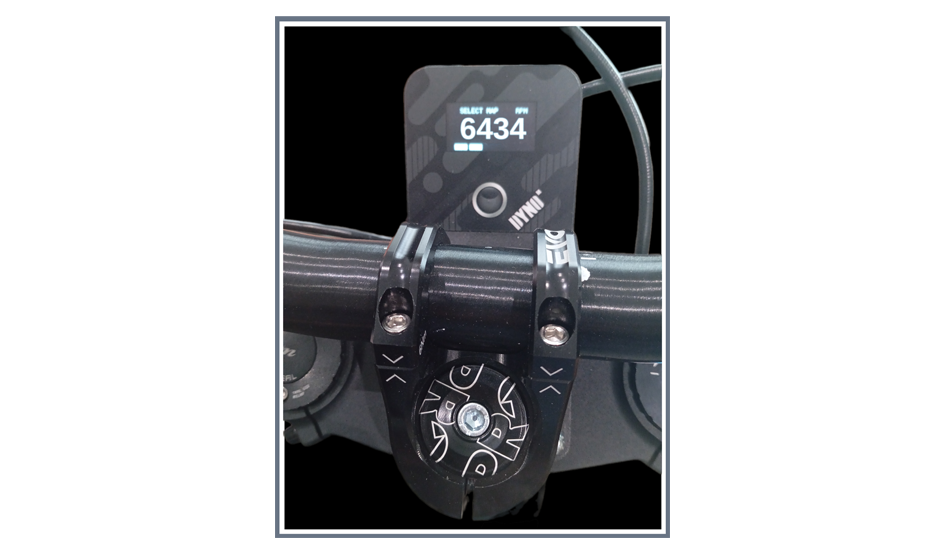

MULTIFUNCTIONAL DISPLAY
LCD display provides basic driving information available on particular switchable screens. List of screens:
speed
trip odo
total odo
battery voltage
battery capacity %
engine temperature
battery temperature
selected driving map (all screens)
battery status info
BATTERY STATUS INFO
Digital BMS provides via CAN communication protocol various battery status and diagnostics information on multifunctional display.
LIST OF SYSTEM AND DIAGNOSTIC INFORMATION: battery humidity, battery cells balance status and individual cells voltages, battery temperatures, SOC, SOH, number of cycles.
BIKE CONTROL & COMMUNICATION SYSTEM
The Bike control & communication system integrates various analog and digital sensors adn control units. Through CAN protocol system online monitors and displays riding data.
System also helps to the bike user process basic motorcycle diagnostics. Wifi and Bluetooth interface feature of the Bike & control and communication system enables connection width the mobile phone application and remains opened for future application development.
POWERPARTS
Ultimate range of powerparts designed specifically for the DYNO M electric bike, enhancing performance, durability, and style. Elevate your riding experience with our premium accessories and upgrades tailored for every adventure.
CHARGER
15A (fast)
30A CHARGER KIT (include superfast chargeable battery)
WHEEL
21" front
16" rear
front and rear
LIGHTS KIT
HIGH SEAT
NON-SLIP COVER SEAT
MOTORCYCLE STAND

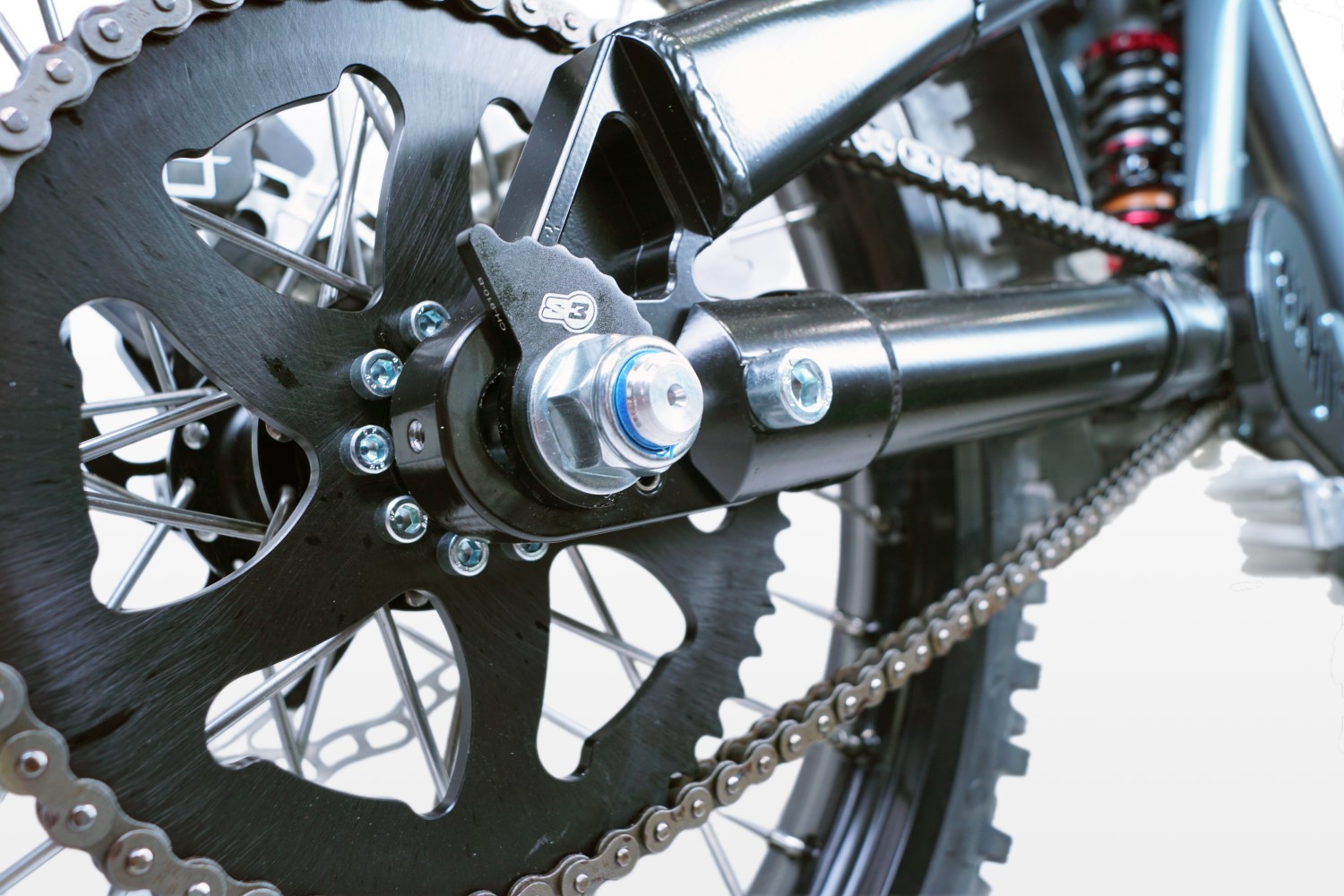

MAIN CHAIN TENSIONERS KIT
S3 RACING FOOTRESTS KIT

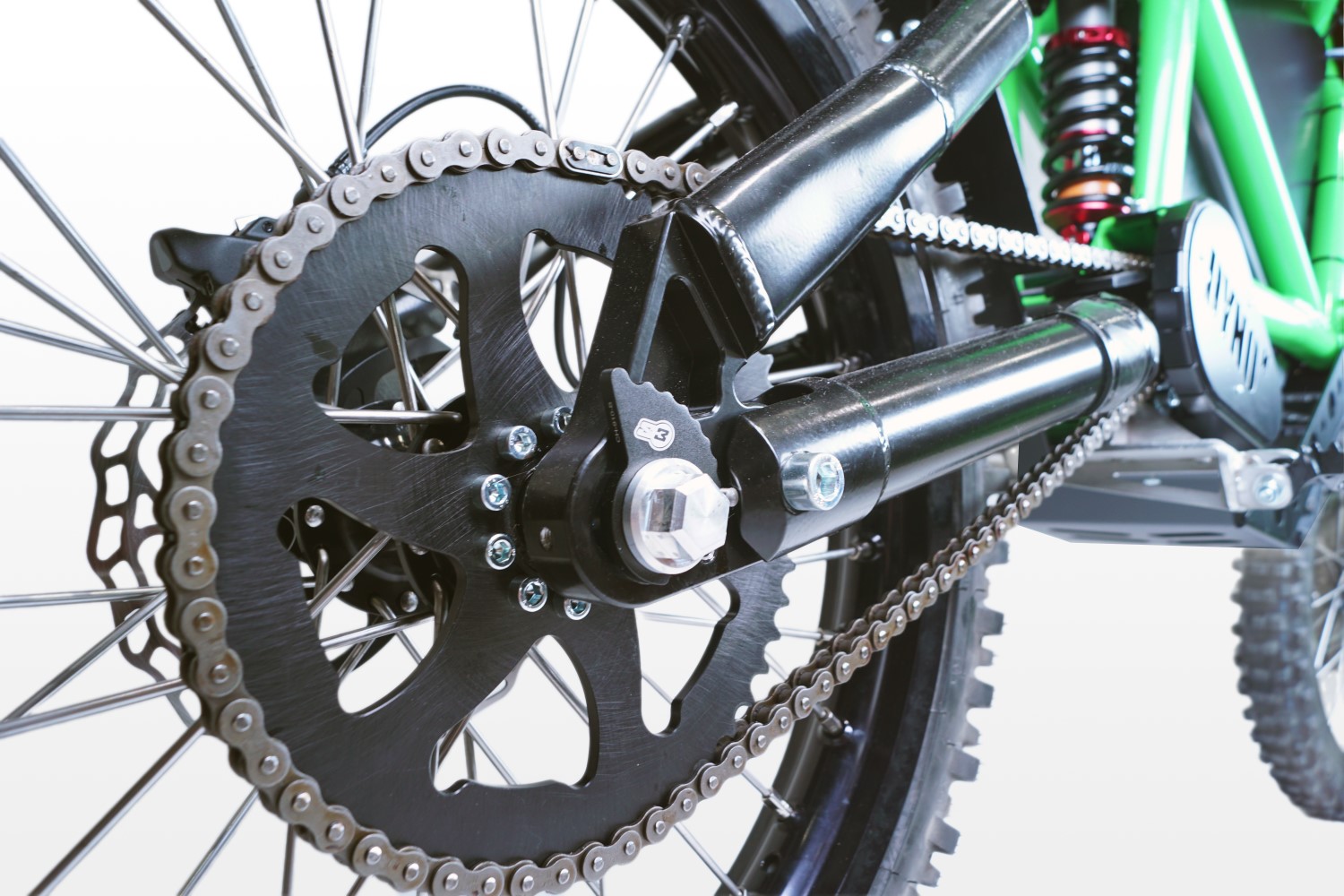

REAR SPROCKET 56T
SPEED & TOURING PRIMARY GEAR KIT
15T/34T/52T - 85 km/h (52 mph)

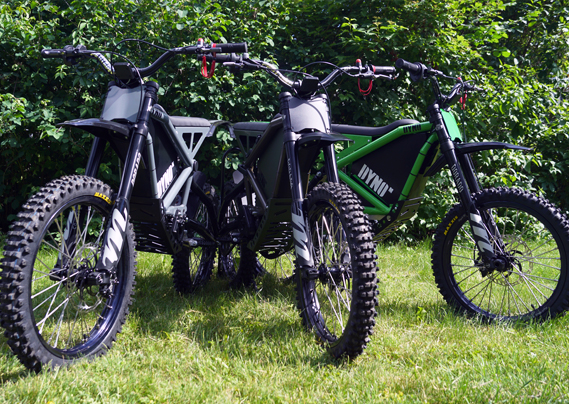

GALLERY
International Sales
EXAC Ltd.
sales@dynobikes.pro / www.dynobikes.pro
Sales network of the Czech Republic
TSS - TECHNICAL SPORTS S. R. O.
sales@tss.cz / www.tss.cz
Sales network of the Slovakia
Motosport racing Puchov
info@ktmpu.sk / www.ktm-racing.sk
Disclaimer: The vehicles shown may differ in selected details from the production models and in some images optional equipment is available at an additional cost. All data regarding the scope of delivery, appearance, services, dimensions and weights are non-binding and accurate, with the understanding that there may be errors in e.g. printing, setting and/or writing, this information is subject to change without notice. Please note that model specifications may vary from country to country. Color variations may occur on coated surfaces due to normal process variations. The stated consumption values ??refer to the operational serial condition of the vehicles at the time of factory delivery.
WARNING: THE DYNO M MOTORCYCLE IS NOT INTENDED FOR ROAD USE. IT IS DESIGNED EXCLUSIVELY FOR OPERATION ON CLOSED TRACKS AND
DESIGNATED OFF-ROAD AREAS.
